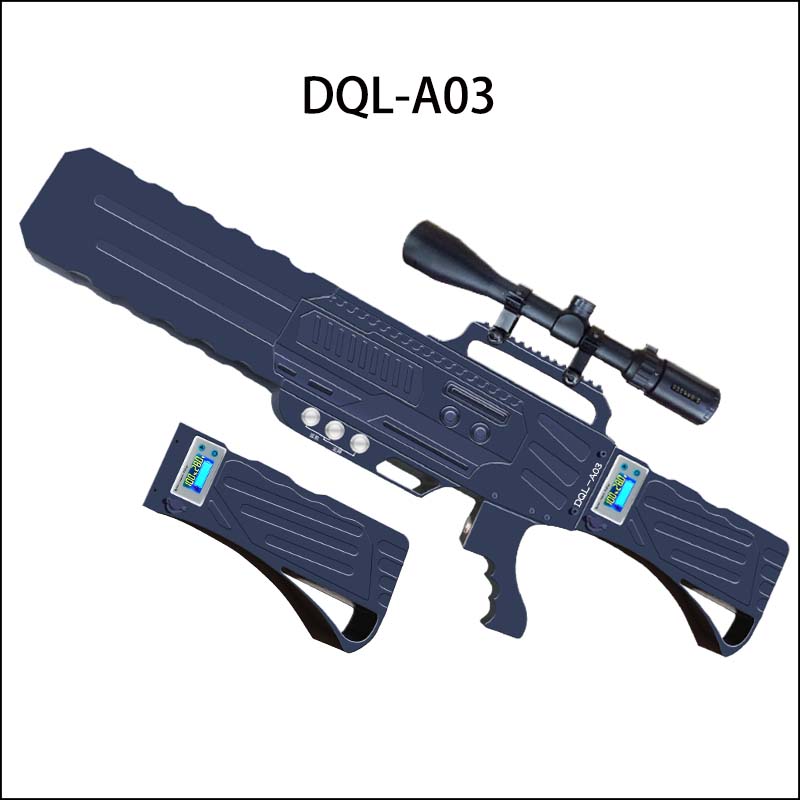

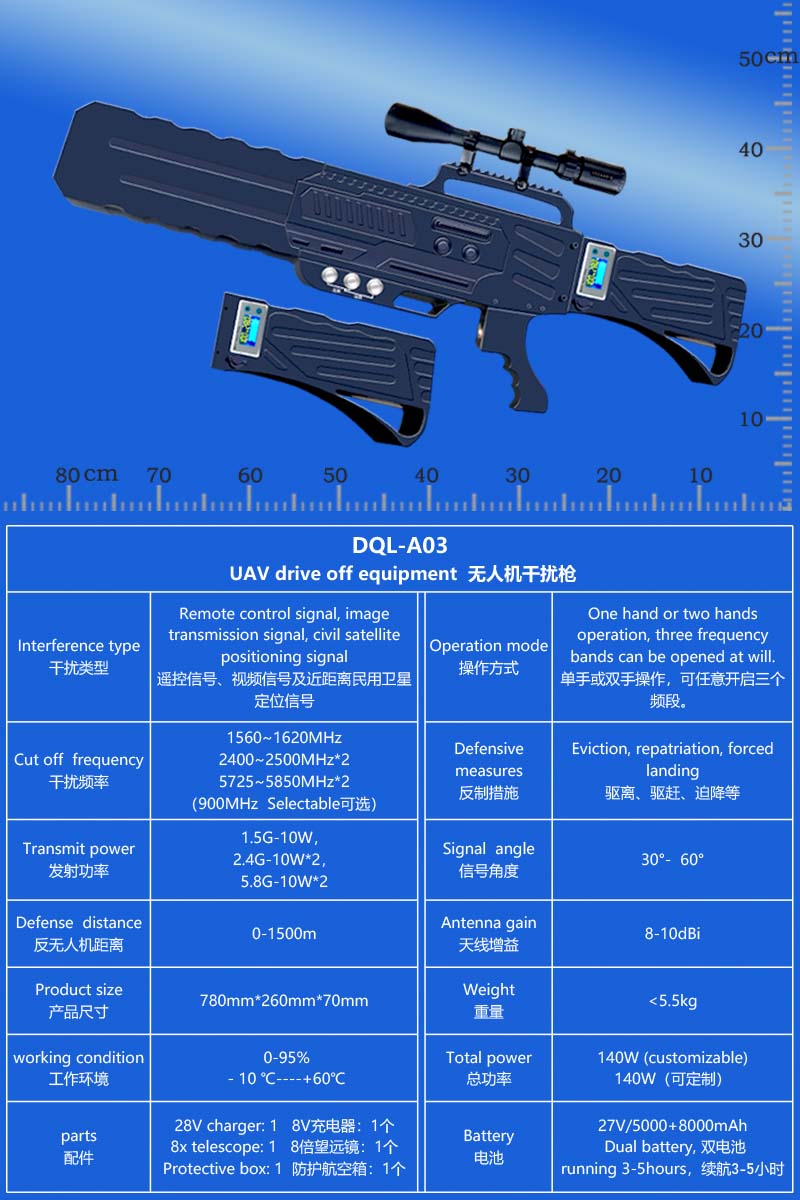

Model:DQL-A03

Jammable signals: remote control signals, video signals, civilian satellite positioning signals

Interception methods: forced return, departure, forced landing, image transmission interference, forced hover and forced landing

Control angle: 30-60 degrees

Control distance: 0-1500 meters

Control frequency

Default 1, 1.5 G (1560-1620mhz)

Default 2, 2.4 G (2400-2500mhz * 2)

Default 3, 5.8 G (5725-5850 mhz * 2)

Optional 900mhz

Transmission power:

1.5g-10w

2.4g-10w*2

5.8g-10w*2

Host appearance size: 78 * 26 * 7cm

Host weight: 5.4KG

Total power: 140W, (other power can be customized)

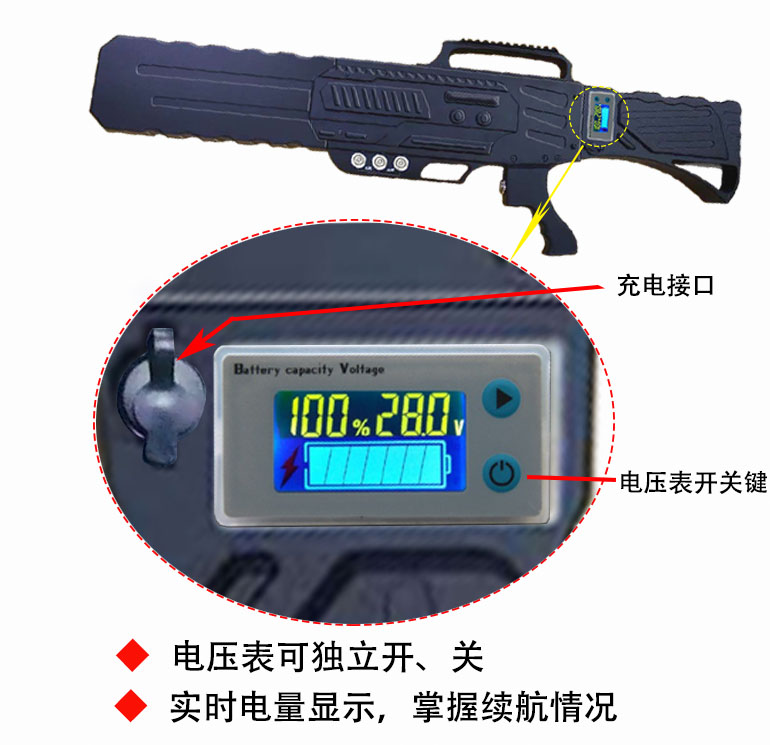

Battery: 5000mA/27V

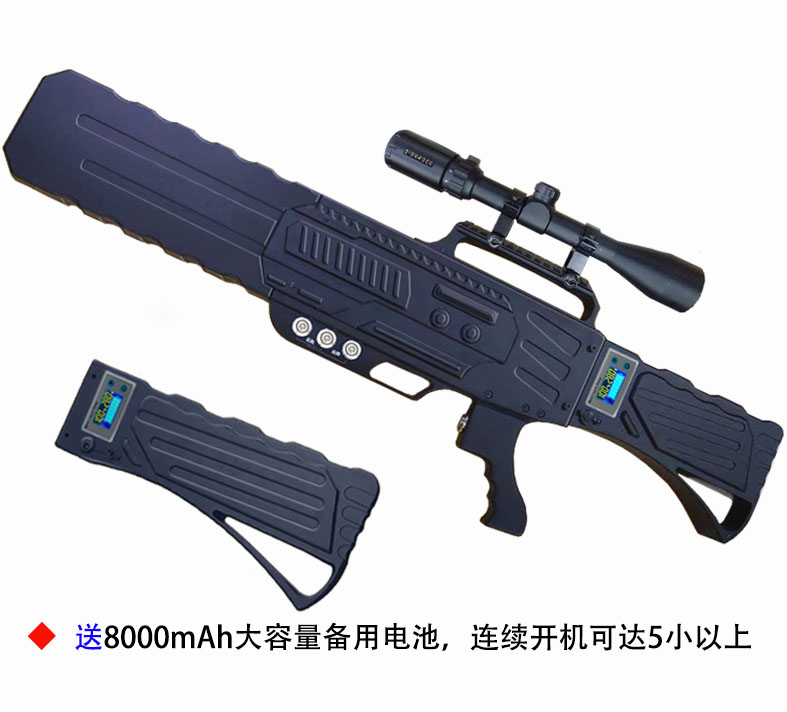

Number of batteries: 2

Battery worktime: 3-5 hours

Antenna: built-in

-----------------------------------------------------------------

可干扰信号：遥控信号，视频信号，民用卫星定位信号

拦截方式：强制返航，驱离，迫降，图传干扰，强制悬停迫降

管制角度 30-60度

管制距离： 0-1500米

管制频率

默认1, 1.5 G(1560-1620mhz)

默认2, 2.4 G(2400-2500mhz*2)

默认3, 5.8 G(5725-5850mhz*2)

可选 900mhz

发射功率：

1.5g-10w

2.4g-10w*2

5.8g-10w*2

主机外观尺寸：78*26*7cm

主机重量：5.4KG

总功率：140W，（可定制其它功率}

电池：5000毫安/27V

电池数量：2个

电池工作时间： 3-5小时

天线：内置
